LP3996
Description
The LP3996 is a low-dropout voltage regulator with low quiescent current and in ultra-small package. The LP3996 can deliver output current up to 250mA. It offers different output voltage within 0.7V to 5.2V. The LP3996 is integrated over current protection and short circuit protection in order to protect system abnormal. The output capacitor as small as 0.1μF is good enough for LP3996. The LP3996 is available in 4 pins ultra-small DFN package with only 1mm ? 1mm size.
Features
? Ultra-low current consumption: 0.7μA (Typ)
? Wide input voltage range: 1.5V to 5.5V
? Fixed output voltages: ? 0.7V to 5.2V with 100mV/step
? High output voltage accuracy: ±1.5%
? Low dropout voltage: ? 60mV (Typ) at 50mA (VOUT = 3.3V) ? 130mV (Typ) at 100mA (VOUT = 3.3V)
? Integrated over-current protection
? Support 1.8V logic EN pin
? Robust ESD capability: ? Human Body Model: 2 kV ? Charged Device Model: 0.5 kV

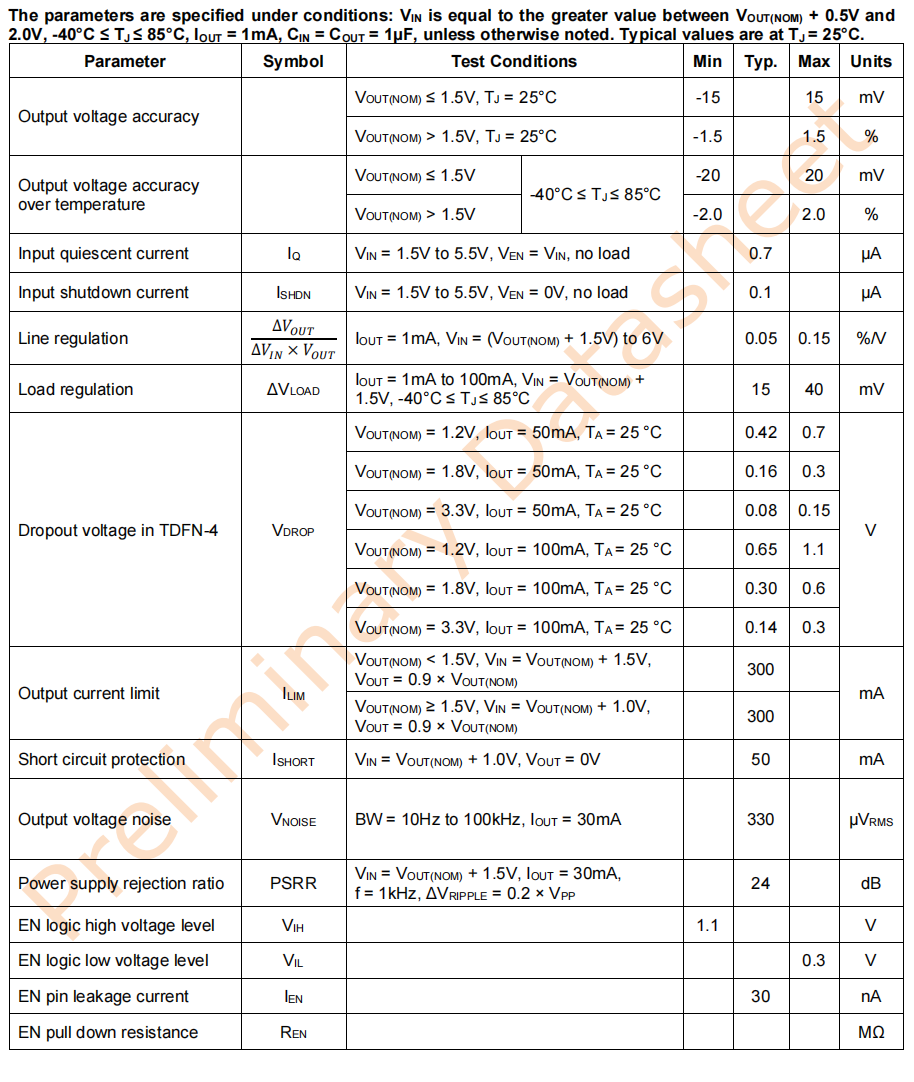

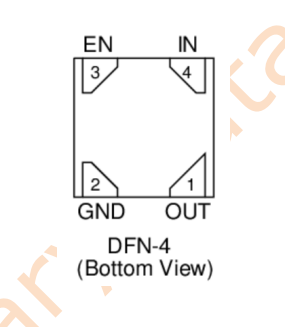

? Available in small packages: ? TDFN-4L, 1.0mm ? 1.0mm
Applications
? Wearable Devices
? Portable Medical Equipment
? PDAs, Mobile Phones GPS devices
